Many users find dual-axis grade lasers too complicated, expensive or overloaded with features. The FL 300HV-G EasyGRADE brings a new meaning to user friendly and ease-of-use!
HORIZONTAL
Self-levelling
Numerical grade setting in X-Axis
Manual grade setting in Y-Axis with remote control
VERTICAL
Self-levelling
Axis direction in Y-Axis with remote control
TILT function
VWS function (Vibration-Wind-Security)
90° beam to zenith
Dust / water protection IP 66
Receiver with clamp

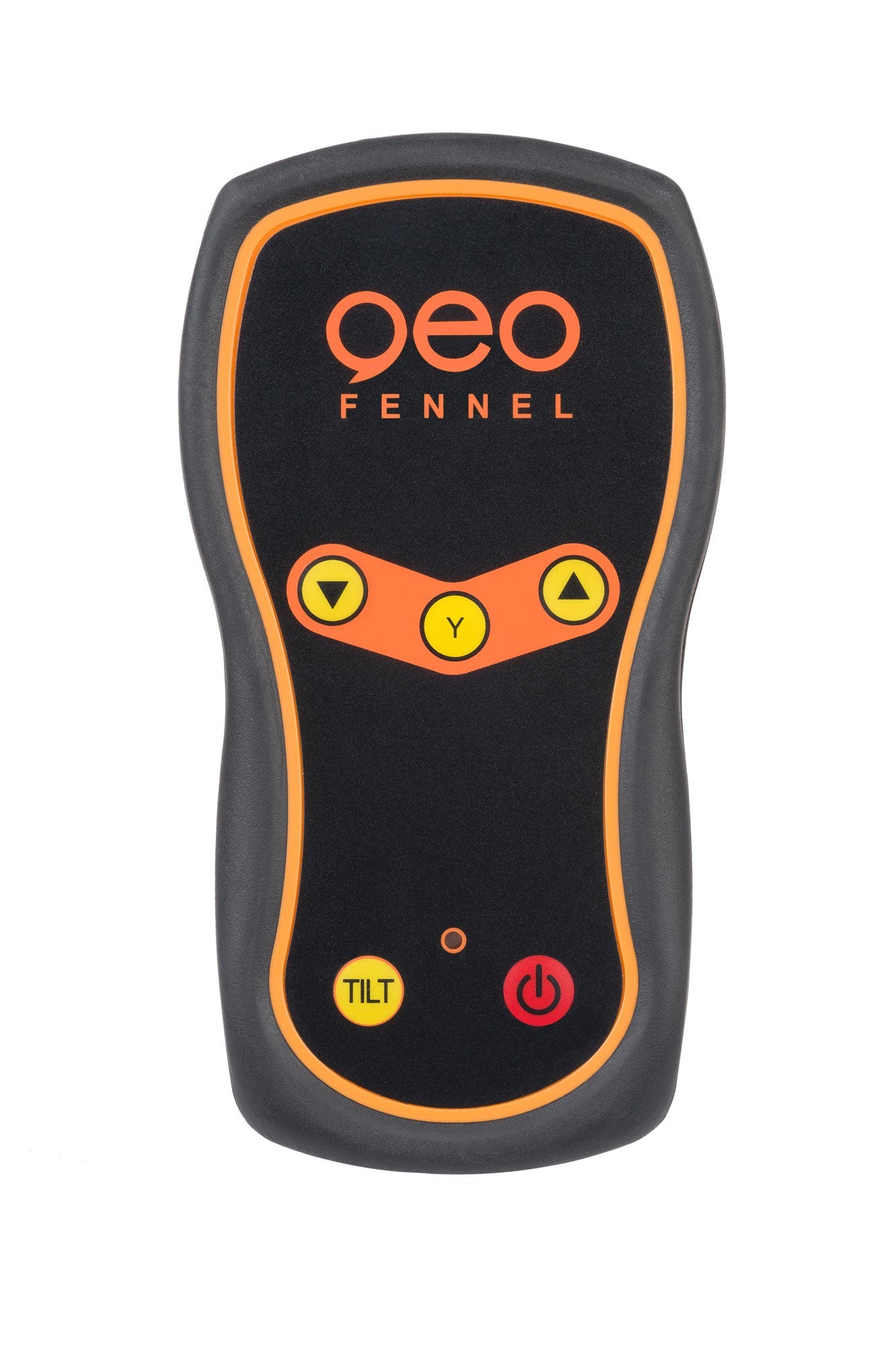

Remote control
Rechargeable battery (Li-Ion)
Intelligent battery charger
Battery case for alkaline batteries
Floor mount (integrated)
Carrying case
Self-levelling range ±5°
Laser class 2
Visible laser beam rED
Horizontal accuracy ± 0.75 mm / 10 mm
Vertical accuracy ± 1mm / 10 m
Working range with receiver (diameter)
with FR 45 1200 m
with FR-DIST 30 600 m
with FR 77-MM 600 m
90° plumb beam up yes
Slope setting / axis direction
HORIZONTAL
Grade setting in X-Axis
+ 0.1 to 6.9% (at 0.1% step)
Y-Axis self-levelled -or- manual grade setting ±5° (±9%)
VERTICAL
Vertical axis direction ±5°
2nd axis self-levelled
Automatic TILT function yes
VWS yes
Remote control working range IR 100 m
Rotating speed 800 rpm
Operating time 40 h Li-on
Temperature range -10° to + 50°
Dust / water protection IP 66
