This item comes within a hard carry case.
Receiver Options
For longer range, or outdoor use, this laser can be used with a laser receiver.
Options mentioned above are:
The FR 55M is a basic, line laser receiver, with 2 step accuracy. Height indication by 3 LEDs which are situated on the front, side and back
The PLS XLD+ is a digital mm receiver, which works with both a rotary and line lasers whether green beam or red beam. Its working range is, Rotary Radius: 200m and Line Radius: 75m. Its detection Height is 60mm.
The FR 75MM, is a digital mm receiver, which can work all red and green multi line lasers. It boasts a extra long receiving window of 100mm with a accuracy in mm-indication of ± 1 mm.
Product Overview

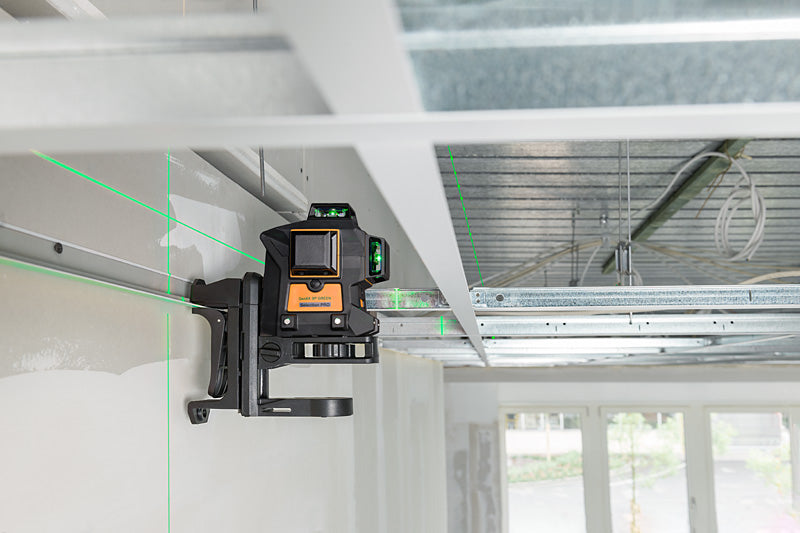

Multi-functional for versatile leveling jobs. The new multi-line lasers Geo6X are our innovative tools for professional construction sites. 3 x 360°-Laser lines form 6 laser crosses with an outstanding visibility. The Geo6X product family comprises 3 models: Geo6X SP, Geo6X SP KIT as well as the Geo6X SP GREEN KIT.
- 3 x 360°-Laser lines
- Compact & rubberized housing
- Outstanding visibility of the laser lines up to Ø 60 / Ø 80 m
- Li-Ion battery for convenient operation (Geo6X SP KIT/ GREEN KIT)
- Full kit with Li-Ion batteries, charger, wallmount and container
- Self-levelling function can be locked for manual use (inclined applications)
Features
- 3 x 360°-Laser lines - form 6 laser crosses -
- Laser lines switchable separately
- Plumbing function Laser plane distance to wall/ceiling min. 12 mm
- Magnets at the front and side for connection to dry wall track
- Use with receiver (optional)
- Self-levelling function can be locked for manual use (inclined applications)
- 5/8" tripod connection at the instruments bottom
- The Geo6X can be operated with both battery box and Li-Ion battery
- Multi-functional mount
- magnets on the back
- strap attachement
- height adjustable
- 5/8" & 1/4" connection
Includes
- Multi-functional mount
- Magnetic target
- Li-ion battery, charger
- Charger with USB 3.0 cable
- Battery case for alkaline batteries
- Container
Specifications
- Self-levelling range: ± 3°
- Accuracy: ± 2 mm / 10 m
- Laser diode / class: green / 2
- Working range* (radius): Ø 80 m
- Working range with receiver (radius): Ø 140 m
- Operating time / Power supply: 14 h / Li-Ion
- Dust/waterprotection: IP 54
- Temperature range: -10°C - +45°C
- Size: 140 x 130 x 80 mm
- Weight (instrument with battery): 0,8 kg
*with receiver
Similar to the DeWalt DCE089D1GXE green beam 3x360 laser level
