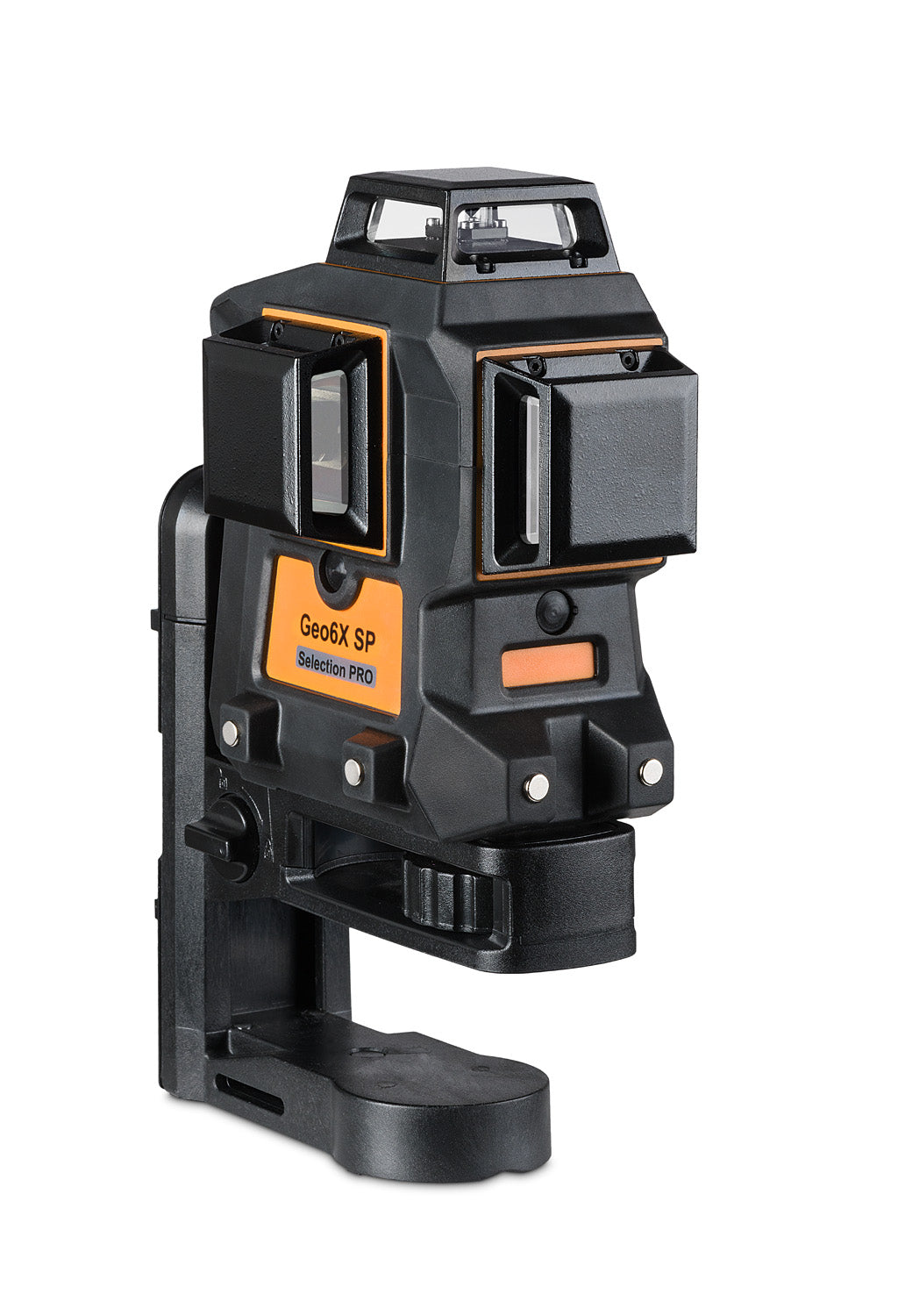

geo-FENNEL Geo 6X Red Beam Laser Only 3 x 360 Multiline Laser Level

the new multi-line lasers Geo6X are our innovative tools for professional construction sites. 3 x 360°-Laser lines form 6 laser crosses with an outstanding visibility.

• 3 x 360°-Laser lines
• Compact & rubberised housing
• Outstanding visibility of the laser lines up to Ø 60 / Ø 80 m
• Li-Ion battery for convenient operation (Geo6X SP KIT/ GREEN KIT)
• Full kit with Li-Ion batteries, charger, wall-mount and container
• Self-levelling function can be locked for manual use  (inclined applications)

This item is the Laser Level only.

Features

• 3 x 360°-Laser lines - form 6 laser crosses -
• Laser lines switchable separately
• Plumbing function Laser plane distance to wall/ceiling min. 12 mm
• Magnets at the front  and side for connection to dry wall track
• Use with receiver (optional)
• Self-levelling function can be locked for manual use  (inclined applications)
• 5/8" & 1/4" connection at the instruments bottom
• The Geo6X can be operated with both battery box and Li-Ion battery

Specifications

• Self-levelling range: ± 3°
• Accuracy: ± 2 mm / 10 m
• Laser diode / class: red / 2
• Working range* (radius): Ø 60 m
• Working range with receiver (radius): Ø 120 m
• Operating time / Power supply: 16 h / alkaline
• Dust/waterprotection: IP 54
• Temperature range: -10°C - +45°C
• Size: 140 x 130 x 80 mm
• Weight (instrument with battery): 0,8 kg
• *depending on room illumination

*with receiver

Similar to the DeWalt DCE089LRXJ red beam 3x360 laser level
