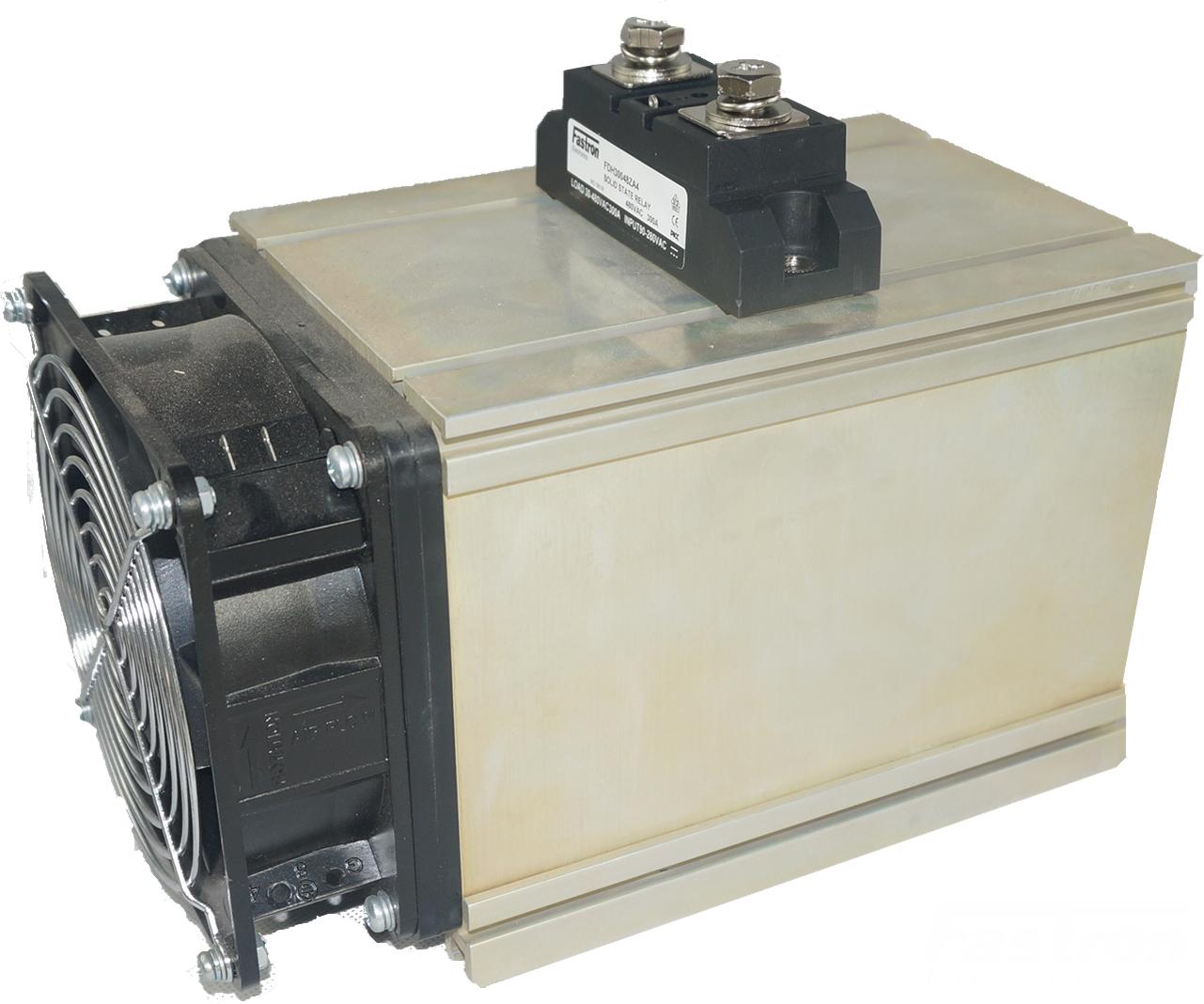

| Part Number | F115 Series |
| Switching Type | Zero Crossing |
| ROHS/CE/UL | Yes |
| Control Voltage | 3-32VDC or 90-280VAC |
| Load Current | 50 - 200 Amp (rms) @ 50 Deg C |
| Surge Capability | 597-2000 Amp (peak) |
| Special Feature | N/A |
| Mounting Style | Panel Mount |
| Load Voltage Range | 70-480VAC |
| Max Non Repetitive Peak Voltage | 600 Vp |
| Termination Style | Screw Terminals |
| Factory Pack Qty | 1 |
| Part Number | Approximate Dimensions | Panel Mount Fuse Kit | DIN Rail Mount Fuse Kit |
| DR2260D35U | L:90 x W:22.5 x D:116mm | ||
| F115-4-50A(D) | L:110 x W:125 x D:185mm (Figure 2) | ||
| F115-4-90A(D) | L:155 x W:125 x D:185mm (Figure 2) | ||
| F115-4-120A(D) | L:210x W:125 x D:195mm (Figure 3) | N/A | |
| F115-4-220A(D) | L:155 x W:125 x D:195mm (Figure 4) | 160-200 Amp 660VAC Fuse Kit | N/A |
| F115-4-250A(D) | L:255 x W:125 x D:195mm (Figure 4A) | 200-250 Amp 660VAC Fuse Kit | N/A |
